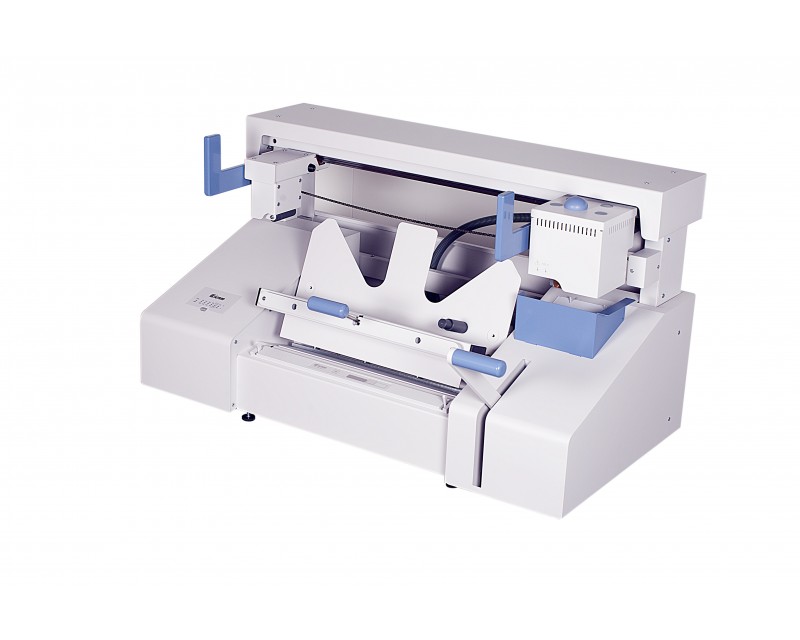

Fastbind EVA XT™: Large format binder

Product Code: 701043
Availability: In Stock
Qty: + -


Fastbind EVA XT is aimed to match the wide-format binding needs for digital on-demand or short run applications.

Fastbind EVA XT can bind books up to 17.7˝ x 12.5˝ portrait or letter landscape. This is ideal for print/copy shops, binderies, school yearbooks and photographers. The end result is a strong, square and affordable perfect bound book.



Specifications



Machine cycles/hour Up to 450
Production speed 1-3 books per minute
Min/max binding thickness 0.1–45 mm / 0.004-1.7 inches
Max. binding length Up to 455 mm / 17.9 inches
Min/Max. binding height 140/320 mm / 5.5/12.6 inches
Max soft cover thickness** Up to 400 g/m² / 225 index
Temperature control range 150-175 °C / 300-350 F
Voltage(V) / Frequency(Hz) 220–240/50–60 / 110-120/50-60
Max. current 1.5 A / 3 A
Machine dimensions (W x D x H) 1080 x 580 x 600 mm / 42.6 x 22.9 x 23.7 inches
Weight 75 kg / 165 lbs
Package dimensions (W x D x H) 1200 x 800 x 860 mm / 47.3 x 31.5 x 33.9 inches
Package weight 111 kg / 245 lbs
Standard tools Soft cover tool set (Hard cover tool set is optional accessory
Approvals CE

* output rate depends on operator, selected cover and glue type
** depending on material properties

Product information as of January 2018 and is subject to change without notice.

Design and specifications are subject to change without prior notice.
